MICRO-EQ10AA
SPECIFICATION: Maximum climbing gradient 8°; Width (wheel to wheel) (mm) 470; Controller S-Drive 45; Height (seat removed and tiller folded) (mm) 426; Max. speed (kph) 6.4 kph / 4 mph; Length (mm) 980; Gear ratio of transaxle 18; Battery charger (Amp.) 2; Kerb climbing (mm) 50; Max. speed-reverse (kph) 3; Seat height over footrest (adjustable) (mm) 330-420; Turning radius (mm) 1110; Battery 12 ah; Motor power (watt) 220; Width (armrest to armrest) (mm) 830; Armrest height over seat (mm) 265; Cruise range (km) 12.8; Tyre size (diameter) rear (mm) 200 mm/7.5"; Ground clearance (mm) 40; Tyre size (diameter) front (mm) 200 mm/7.5"
 MINI S-EQ20CA
SPECIFICATION:
Maximum climbing gradient 8°; Width (wheel to wheel) (mm) 520; Controller S-Drive 45; Height (seat removed and tiller folded) (mm) 440; Max. speed (kph) 6.4 kph / 4 mph; Length (mm) 1080; Gear ratio of transaxle 18; Battery charger (Amp.) 2; Kerb climbing (mm) 60; Max. speed-reverse (kph) 3; Seat height over footrest (adjustable) (mm) 860; Turning radius (mm) 1220; Battery 22 ah; Motor power (watt) 340; Width (armrest to armrest) (mm) 600-830; Armrest height over seat (mm) 235-275; Cruise range (km) 16 / 21 (12AH/17AH); Tyre size (diameter) rear (mm) 230 mm / 9" (Solid); Ground clearance (mm) 40; Tyre size (diameter) front (mm) 230 mm / 9" (Solid)
 SUPER 4-EQ30BB
SPECIFICATION:
Maximum climbing gradient 10°; Width (wheel to wheel) (mm) 590; Controller S-Driver 45; Height (seat removed and tiller folded) (mm) 1000; Max. speed (kph) 6.4 kph / 4mph; Length (mm) 1220; Gear ratio of transaxle 19.25; Battery charger (Amp.) 4; Kerb climbing (mm) 80; Max. speed-reverse (kph) 6.4; Seat height over footrest (adjustable) (mm) 440 - 500; Turning radius (mm) 1350; Battery 36 ah; Motor power (watt) 430; Width (armrest to armrest) (mm) 610 - 785; Armrest height over seat (mm) 235 - 275; Cruise range (km) 28; Tyre size (diameter) rear (mm) 255 mm / 10" (Solid); Ground clearance (mm) 51; Tyre size (diameter) front (mm) 255 mm / 10" (Solid)

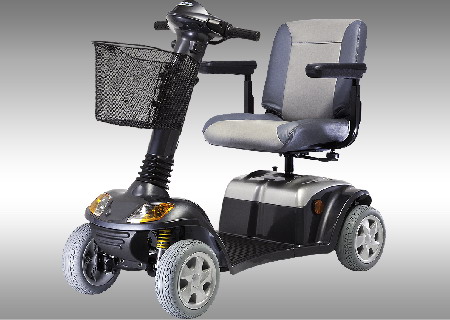

 SUPER 8-EQ35CB
SPECIFICATION:
Maximum climbing gradient 10°; Width (wheel to wheel) (mm) 590; Controller S-Drive 70; Height (seat removed and tiller folded) (mm) 1010; Max. speed (kph) 12.8 kph / 8 mph; Length (mm) 1220; Gear ratio of transaxle 19.25; Battery charger (Amp.) 5; Kerb climbing (mm) 80; Max. speed-reverse (kph) 3.2; Seat height over footrest (adjustable) (mm) 450 - 510; Turning radius (mm) 1560; Battery 36 ah; Motor power (watt) 430; Width (armrest to armrest) (mm) 610 - 785; Armrest height over seat (mm) 235 - 275; Cruise range (km) 28; Tyre size (diameter) rear (mm) 255 mm / 10" (Pneumatic); Ground clearance (mm) 51; Tyre size (diameter) front (mm) 255 mm / 10" (Pneumatic)
|
